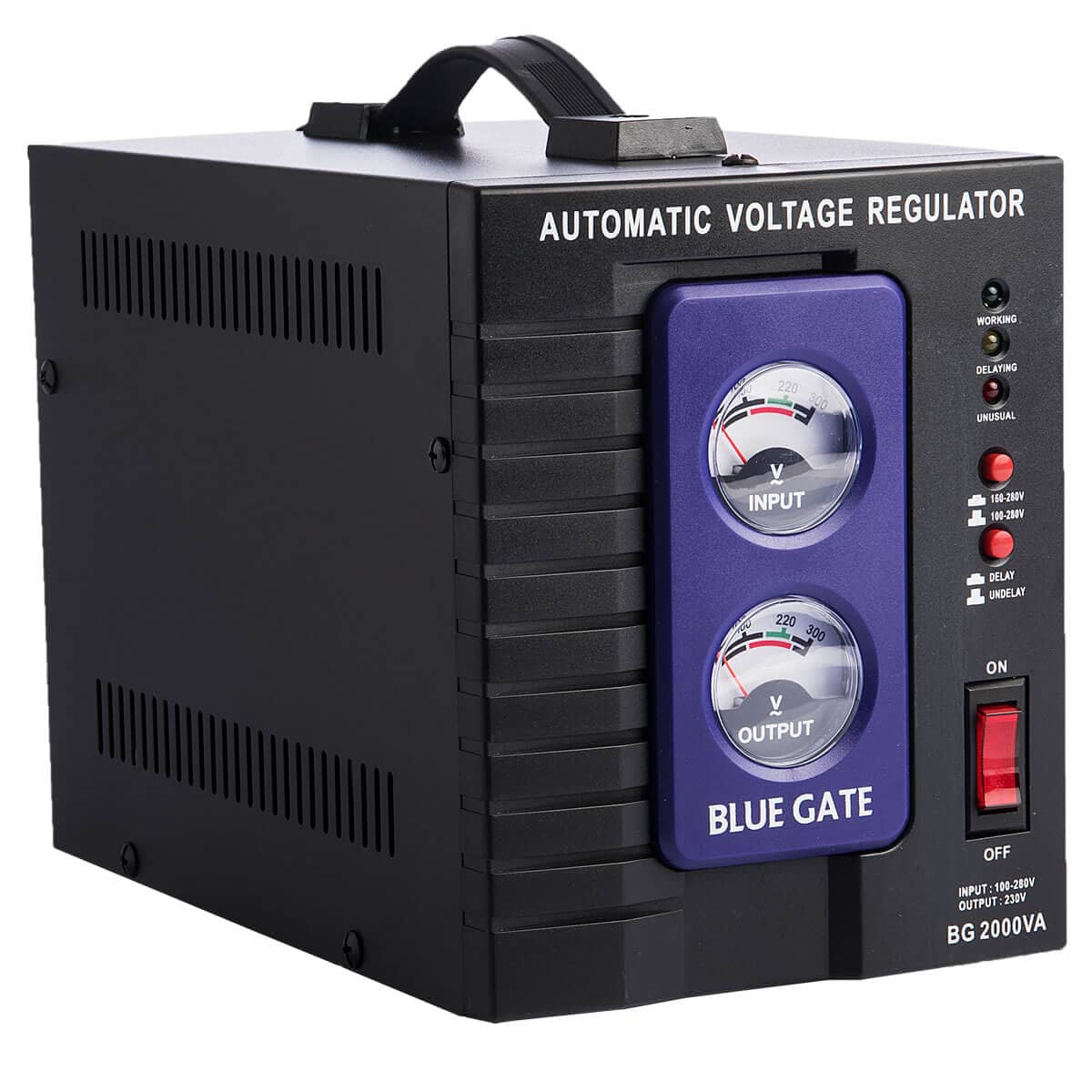

This AVR-series uses advanced control technology made with reliable components. It is a new type of AC automatic regulator with an automatic control system. It features wide input voltage range, high reliability, better stabilized output voltage and is energy saving.
It supplies stabilized power to TVs, Refrigerators, Computers, Duplicating machines and all other household equipment etc.
Features
- Input And Output Display
- Over Voltage Protection
- Over Load Protection
- Low Output Voltage Protection
- High Output Voltage Protection
- High Temperature Protection
- Wide input voltage range (Super Low model also available)
- Over-voltage, Low –voltage, delayed output, short circuit and High temperature protection
- Classic series, EI transformer, relay type
- Input and output voltage meter display
- Circuit breaker
- Efficiency: 98%
- VA Rating : 2000VA
TECHNICAL DETAILS (2000VA)
INPUT
- Phase: Single phase + N+ GND
- Voltage Range: 100VAC-260VAC (Super low voltage range also available)
OUTPUT
- Voltage Range: 200-240V(Empty load)
- Frequency: 50/60Hz
- Over voltage protection: 250V+5V (Over voltage indicator lights without output
- Under-voltage protection: 100V+5V (Under-voltage indicator lights without output)(not applicable to super low options)
SYSTEM
- Efficiency: 95%
- Display Mode: LED indicator light; Pointer voltmeter/LCD display

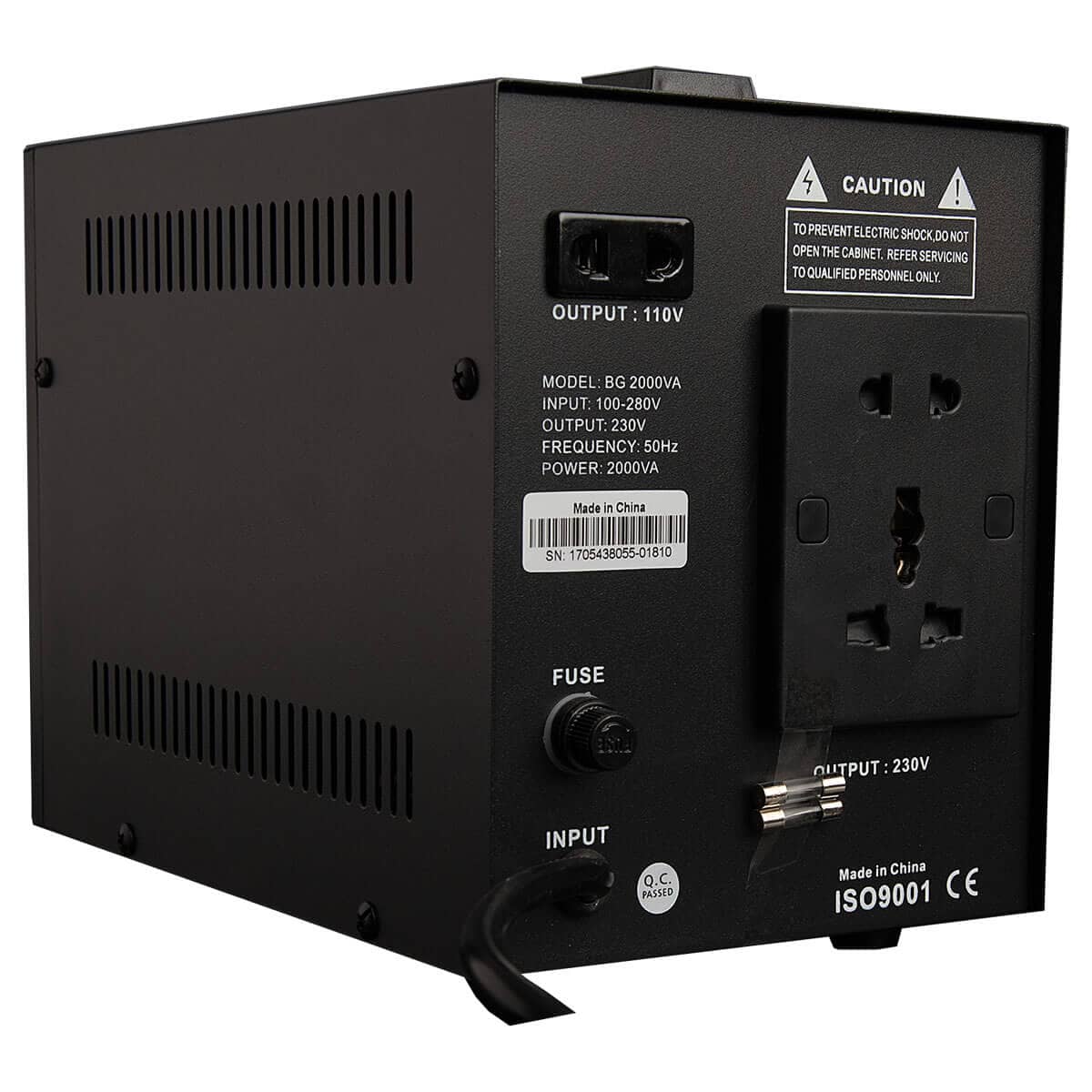

- Input/Output setting: Plug/Socket
- Wave Distortion: No additional waveform distortion
- Insulation Resistance: >2M
- Dielectric Strength: Low frequency sine voltage 1500V for 1 minute (without phenomena of breakdown and flashover)
- Ambient Temperature: -10 degree C – 40 degree C
- Relative Humidity: 95%
